Wednesday, April 23, 2008

Copper Pipe Part Catalog

To celebrate making it over $80 of Google AdSense revenue (only took 2 years) I placed a copper pipe (Type K) part catalog on this website. The sizes where taken from this website.

To get the pipes to be included in your catalog, place the three files from the other website in the following folder:
Vista: C:\ProgramData\Autodesk\C3D 2008\enu\Pipes Catalog\US Imperial Pipes\Circular Pipes
or
XP: C:\Documents and Settings\All Users\Application Data\Autodesk\C3D 2008\enu\Pipes Catalog\US Imperial Pipes\Circular Pipes

Once copied over, go to the Pipes menu, Part Builder and click on the catalog regen button. The copper pipe should then be available to add to a parts list, although it may not show up after clicking the button. If it doesn't show up click the folder with check mark button and try again.

I'm looking for sponsors for other pipe sizes. Send me an email at fredbobchris@gmail.com if you are interested.

Fixing the Station and Curve Report

One of my former coworkers wanted to have the Station and Curve report show station equation values in the correct format instead of in the decimal form. To do this open up the
C:\Program Files\Autodesk\LandXML Reporting 7\Support\xsl\Alignment Station and Curve.xsl
in your favorite text editing software or XML Notepad.

Near the top of the document there are three lines of text that write the station equation information to the html document. The three (3) lines are below:

<td><xsl:value-of select="@staInternal"/></td>
<td><xsl:value-of select="@staBack"/></td>
<td><xsl:value-of select="@staAhead"/></td>

If you go further down you will notice that other station type numbers have more information in them. For instance the start points of a line use this text:

<td><xsl:value-of select="landUtils:FormatStation(string($startStation), string($Alignment.Station.Display), string($Alignment.Station.precision), string($Alignment.Station.rounding))"/></td>

You will notice that "landUtils:FormatStation is included with a bunch of strings. The strings set the precision and format of the $startStation value in the first string. So we will need to add lines similar to the one above to the station equations. So the modified three line for the station equations should look like this:

<td><xsl:value-of select="landUtils:FormatStation(string(@staInternal), string($Alignment.Station.Display), string($Alignment.Station.precision), string($Alignment.Station.rounding))"/></td>
<td><xsl:value-of select="landUtils:FormatStation(string(@staBack), string($Alignment.Station.Display), string($Alignment.Station.precision), string($Alignment.Station.rounding))"/></td>
<td><xsl:value-of select="landUtils:FormatStation(string(@staAhead), string($Alignment.Station.Display), string($Alignment.Station.precision), string($Alignment.Station.rounding))"/></td>

Now when you run the report the station equations should be formatted as a station value instead of decimal form.

You will want to make sure you create a backup of the file in case you want to go back to the original report.

Sunday, April 20, 2008

Extra Pipe Types

The English UK Country Kit Update has been updated. The thing that caught my eye was additional pipe sizes and types. Below is the list that is included. They are all in metric, but changing them to english units would probably be a little easier than starting from scratch (but would still be a pain). Here is the link to download them:
http://usa.autodesk.com/adsk/servlet/index?siteID=123112&id=7271531&linkID=9240698

PE Pipes
..SDR11
..SDR17
..SDR21
..SDR26
PVC-O Pipes (Uponor Mondial)
PVC-u pipes
Cast Iron Class AB
Cast Iron Pipe Class CD
Clay pipes
Concrete pipes
Copper Pipes
Ductile Iron Pipes
Pvc Pipe
Spun Iron pipe
Steel API SL pipes
Steel BS1387 Pipes
Steel BS3600 Pipes
Steel ISO 4200 Pipes Series 1
Steel ISO4200 Series 2
Steel ISO4200 Series 3
Comms ducting multiway
Ovoid Concrete Pipe
Generic Circular pipe

Thursday, April 10, 2008

Project Freewheel Test

Adding Project Freewheel to a website is really easy. Go to http://freewheel.autodesk.com/developers.aspx and click the Embed it in your website. Copy the code and place it in the HTML, giving the correct size and your public location of the dwf.

Tuesday, April 08, 2008

DWF Scale

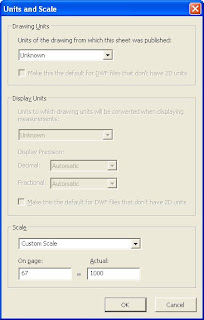

You can insert a picture into Design Review and then set the scale of the picture to dimension items or create redlines. To set the scale go to Tools, Units and Scale from the menu bar. Set units of the drawing and then set the custom scale. If the scale won't let you enter decimal numbers, so if you have 0.67 drawing units = 10 feet enter 67 = 10000 as the custom scale to get a scale that should be fairly correct.

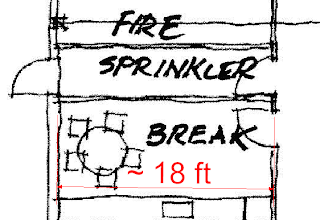

The distance redlines in the drawing should show a dimension that is fairly close.


Monday, April 07, 2008

InRoads

Learning Inroads has been interesting. It's a little wierd having two windows to control the program, the regular Micostation program and a separate one for Inroads. Inroads also works differently from Microstation in that it doesn't save the changes as you change the drawing. I am getting tired of dialog boxes not working the way I'm used to. If you open a surface file and hit open, the dialog box stays open instead of closing and it seems like every dialog box exhibits this behavior. I find this very frustrating after working with Windows based programs for the past 15 years.

Creating alignments and profiles can be vary similar to Civil 3D in that you use different types of segments to make up the portions of the alignment or profile. Modifying them using grips doesn't appear to be possible.

There are some very confusing methods to draw the objects in the dgn file. You have to choose to use a pencil or a pen. The pencil option just creates a temporary graphic of the Inroads object and a pen adds the corresponding linework to the drawing.

The tutorials for Inroads are hard to find. The program, at least in the version I am using, doesn't install with the program and you have to go to the Bentley website to get the files ftp://ftp.bentley.com/pub/knowledgebase/attachments/InRoads_V8.8_Tutorial.zip.

Overall I think I would rate the program slightly over Land Desktop because of the ability to edit the alignments after creation, never did figure out how to do it in Land Desktop. The pencil/pen confusion I have makes it so I can't rate the program higher. I'm only going to use Inroads when required by a project and stick with Civil 3D as my prefered program. I hope to start looking at PowerCivil, but the use of it won't get vary far since the company I work for doesn't have licenses for the program.

Tuesday, April 01, 2008

VBA - Check to See If Alignment Isn't Assigned To Pipe

This is just a quick reminder on how to check to see if an alignment is assigned to a pipe.

If oPipeRef.Alignment Is Nothing Then
' Just a default name that hopefully nobody will use.
dPipeNameRef = "GiberishAlignmentNameDontNameItThis"
Else
dPipeNameRef = oPipeRef.Alignment.Name
End If

If the alignment isn't assigned and you assign the value of the name an error is generated. You can ignore the error, but it may cause problems.
