Friday, July 23, 2010

Point Number Expression

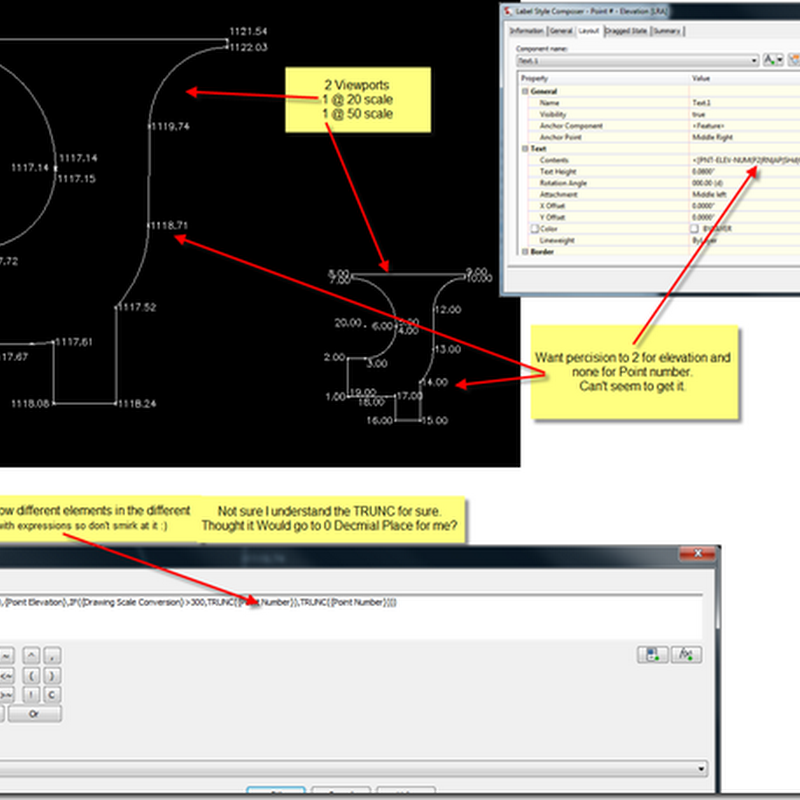

How to do this?

Expresssion

In order to show labels with different information in different viewports use two expressions, make sure to use Format Result for the Elevation. One for Elevation:

SNAGHTML17c88b98

One for Point Number.

SNAGHTML17c938a9

Next add the expression values to the labels, making sure to utilize the hide negative value option.

SNAGHTML17cb2da1

Now the labels will appear differently.


1 comment:

Brian said...

You might want to change one of those to "greater than or equal" or "less than or equal". In your example, if the drawing scale conversion is equal to 300, then nothing will be displayed.
