Superelevation Report – Part 1

Creating a Superelevation Report.

First copy the source files for the report, put it in an easy location to find. (For WIndows 7: C:\ProgramData\Autodesk\C3D 2010\enu\Data\Reports\Net)

Rename the AlignSta_ExtractData.vb to AlignSuper_ExtractData.vb and ReportForm_AlignSta to ReportForm_AlignSta.vb, from within Visual Studio.

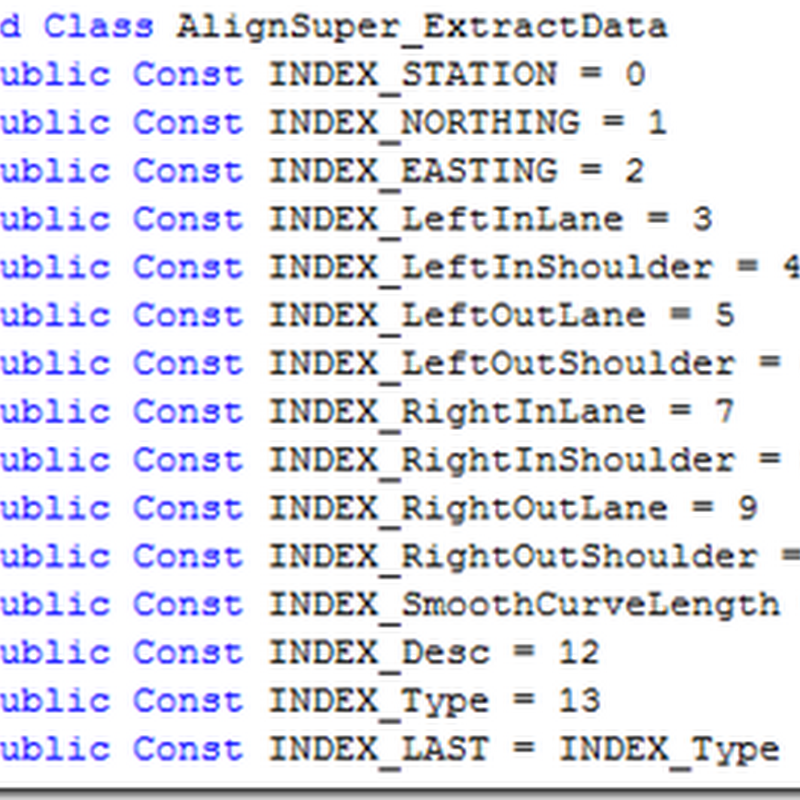

Change the index at the front of the AlignSuper_ExtractData.vb to match what information is needed to be extracted. In this case all of the information available is extracted.


Next revise what’s extracted from the alignment. In this case the Superelevation information.


In the next post I’ll revise the report code for the output.
