Civil 3D provides reporting methods using both XML Reporting and .NET reports. This post is

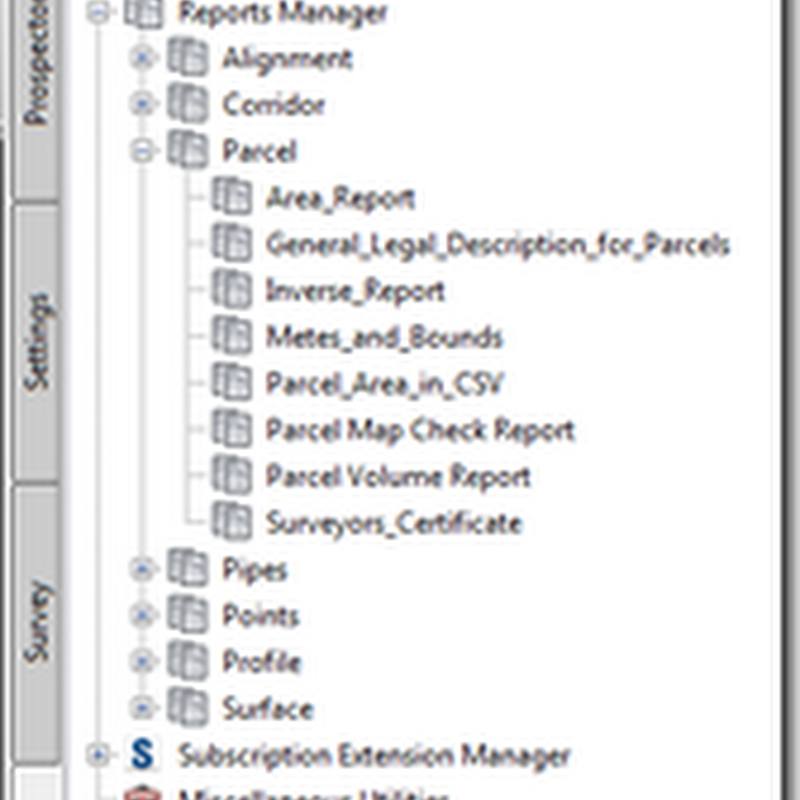

“This is a sample report form for generating metes and bounds legal descriptions for parcels. This report form (stylesheet) is not intended to be a replacement for a trained, experienced professional. It is intended as a example to make the professional more productive.”
While we can wish Autodesk would put in a report exactly the way we want, it would appear Autodesk’s position is that you the professional should take the example and produce your own report that meets your requirements. So now that we know we need to modify the reports to meet our requirements, how do we do this?
First we need to know where the report files are stored. They are located here: C:\ProgramData\Autodesk\C3D 2011\enu\Data\Reports\xsl (at least in Windows 7/Vista). Each report has it’s own XSL file. The XSLstands for EXtensible Stylesheet Language and provides the instructions on how the XML file should be transformed into a report. There are XSL editors available, but I haven’t had much luck in using them. Instead I’ve been using Notepad to modify the reports.
The XSL then uses other files contained in the source folder. Each of them does different things. For instance the Conversion_JScript.xsl converts the units from Metric to English or the other way around or changing the unit types (such as feet to miles). Modifying them is as straight forward as modify the text. As the file name indicates the conversion file uses JavaScript to run the report.
The GeneralLegalPhrasings.xml file has the wording used for the legal descriptions. So if you wanted to change the wording in the Parcel reports, you’d modify the wording in this file.
This is just a brief explanation on how to modify the files, I may post more another day.
If you don’t want to modify the reports yourself, I’m available and willing to provide quotes to modify the XML reports to meet your requirements. Just Email me for more information.
18 comments:
Friend, I'm a fan of your blog, love all your posts.
I have a doubt in the parcels.
My reports are coming out like this:
Point of Beginning: North: East 7443062.5275m: 225425.2309m
Segment # 1: Line
Course: 068 ° 05 '15:52 "Length: 91.993m
North: East 7443096.8581m: 225510.5779m
it is possible to leave as well? in parentheses
Point of Beginning: North: East 7443062.5275m: 225425.2309m
Segment # 1: Line
(Course: 068 ° 05'15 "Length: 91.99 m)
North: East 7443096.8581m: 225510.5779m
Yes it is possible.
You can change the wordings in this file: C:\ProgramData\Autodesk\C3D 2013\enu\Data\Reports\xsl\GeneralLegalPhrasings.xml It looks for the words in {} and replaces them. So replace your information with the words that represent the number and then copy the information into the XML file.
For instance "Course: 068 ° 05'15 "" would become "Course: {linedirection}"
Do you have a way to get the Station and Curve report from Alignments to print the PI station?
Yes, it is possible to get report that information. I don't have any examples handy. You can look at the Alignment PI report to see how it is done in that report.
I do provide report customization services if you require additional help.
So I am trying to edit the generallegalphrasings.xml, we want the bearing of a line to be spelt out, North instead of N and so on. we also wanted to change the curve description to tell us the length of the curve, the curve rotation, the radius, then the chord bearing and distance. looking at the xml file I don't see how the descriptions I am getting are possible, they give us the delta of the angle but does not have that command in the xml.
I'm a bit busy currently helping paying customers and won't have time to address your questions for another two or three weeks.
I would like to know if a way has been found to add the length of the curve to the legal phrasing file in xml. Scott had asked about this a while back - is there a solution?
Here is how to add the curve length. http://blog.civil3dreminders.com/2014/01/xml-reportingcurve-lengths.html
I have located the "general legal phrasings.xml" and edited the wording to fit my preferred description style, but I cannot save the file...I get a note saying "access denied". Do you have any idea why this would happen? Thanks.
Yes, it's because it's in a protected windows file location. Move it to another folder, make the change and then move it back.
i need help with the report part, when i do the general legal description and pick my file, it shows an error on the export of the landxml file, any idea what im doing wrong or how i can fix thix
What did the error say?
Error displaying report in registered browser. The specified file was not found...
I'm a old school land desktop and Carlson user, so civil 3D from 09 on is tough for me
Is your default browser Internet Explorer? If not make it so and see if that fixes it.
I want to remove the spaces between the letters and symbols in the bearing call as follows: S 28° 56' 31" E to S28°56'31"E. How do I edit the (lineDirection) file that it is pulling this info from?
Open the xsl files in Notepad++ and do searches for:
+ " " +
"S "
"N "
and then change the values, if applicable, to remove the spaces. Then try it out and see if it fixed it.
Make sure to make a backup of the files first.
Hello Christopher, I am also attempting to do precisely what the last gentleman was...
I want to remove the spaces between the letters and symbols in the bearing call as follows: S 28° 56' 31" E to S28°56'31"E. How do I edit the (lineDirection) file that it is pulling this info from?
Which .xsl file are you referring to?
Here is a post with images and more information:
http://blog.civil3dreminders.com/2022/08/modify-xsl-reports-to-remove-spaces-in.html
